Fresh Rice Noodle Production Line
Download:
Keywords:
Description:
Heshan fresh rice noodle production line runs fully automatically and produce snow-white fresh rice noodle in forms of strips or roll with about 55% water content.
Heshan® fresh rice noodles machines automatically produce fresh rice noodles strips or rolls through a series of process shown in the flowsheet bellow. The steaming machine is the central part of the assembly of the fresh rice noodles machines, which consists of the frame, steaming pot, starch distributing pan, pulp distributing mechanism, gear box, starch pump, steam piping and diesel burner. Its features are: short operation time for well cooked rice noodles and adjustable noodle strip thickness.
Specification:
| Type | Eletric Heating Type | Steam & Fuel-oil Heating Type | ||||||
| Model | FRN50 | FRN100 | FRN150 | FRN200 | FRN250 | FRN350 | FRN450 | FRN550 |
| Capacity (kg/h) | 50 | 100 | 150 | 200 | 250 | 350 | 450 | 550 |
| Steam Consumption(kg/h) | 40-80 | |||||||
| Steam Pressure(Mpa) | 0.03-0.06 | |||||||
| Operators/shift | 2-4 | |||||||
| Overal Dimenssion(m3) | (5-8)x(0.6-1.2)x(1.2-1.6) | |||||||
| Rice Noodle Thickness(mm) | 0.6-1.2 | |||||||
Production line:
 |
 |
 |
| Rice Milling Machine | Rice & Water Separator | Steaming Machine |
 |
 |
 |
| Steam Generator | Cooling Machine | Slitting Machine |
 |
 |
 |
| Rolling Machine | Fresh Rice Noodle Automatic Operation | The Whole Production Line |
The fresh rice noodles is made by the following steps:
Rice Soaking-Mixing → Wet Rice Milling → Rice Slurry Filtering → Rice Slurry Concoction → Rice-Pasta-Sheet Steaming → Cooling → Soft Fresh Rice Noodles Rolling Machine → Wet Rice Noodles Cutting Machine → Fresh Rice Noodles Products
This is the principal process of wet rice noodles making with versions different slightly, which are suitable to make fresh Chinese jelly noodles, hefun, cold rice noodles, etc.

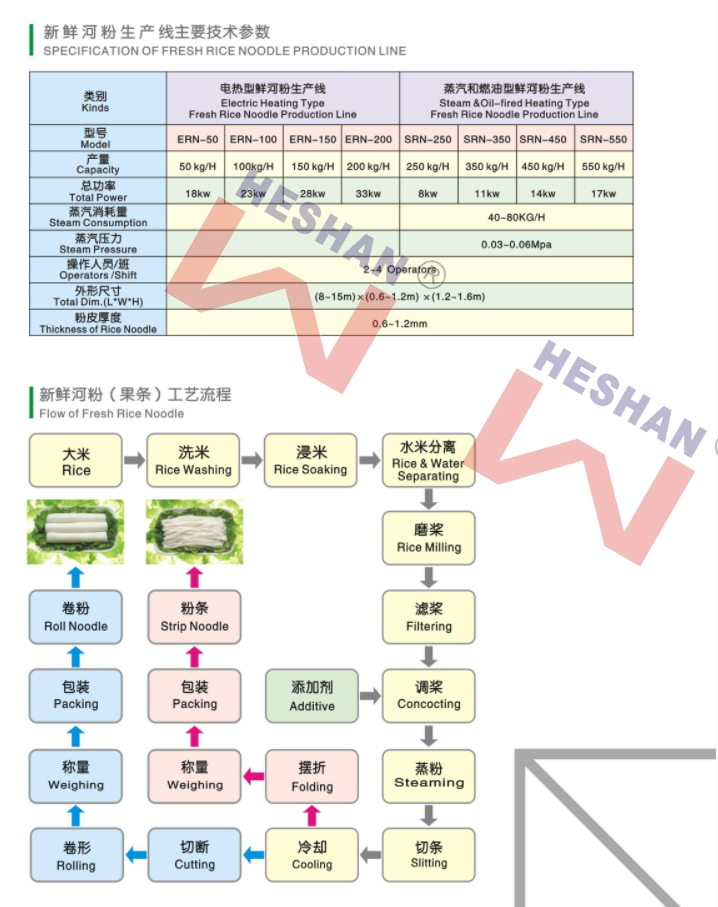

Flow Chart of Fresh Rice Noodle:
Flow of Fresh Rice Noodle:
FRESH RICE NOODLE SAMPLE:
