Fried Cup Bowl Instant Noodle Line
This is a standard flow chart of the cupped instant noodles production line which can be partially altered according to specific requirement. It is compatible to the Indomie instant noodles production line. It is similar to the Bag instant noodles production line except the shaping of noodles.
Categories:
Download:
Keywords:
Product details
Product Description:
This is a standard flow chart of the cupped instant noodles production line which can be partially altered according to specific requirement. It is compatible to the Indomie instant noodles production line. It is similar to the Bag instant noodles production line except the shaping of noodles.
Specification:
| Fried Cup (Bowl) Instant Noodle Production Line | ||||||||||||||
| Model | FCN-200A | FCN-200B | FCN-300A | FCN-300B | FCN-400A | FCN-400B | FCN-500A | FCN-500B | FCN-600A | FCN-600B | FCN-700 | FCN-800 | FCN-900 | FCN-1000 |
| Output (cups/8h) | 40,000 Cups | 60,000 Cups | 70,000 Cups | 90,000 Cups | 100,000 Cups | 120,000 Cups | 130,000 Cups | 150,000 Cups | 160,000 Cups | 180,000 Cups | 200,000 Cups | 230,000 Cups | 260,000 Cups | 290,000 Cups |
| Rated power (kW) | 42KW | 47KW | 52KW | 57KW | 62KW | 67KW | 72KW | 77KW | 82KW | 87KW | 92KW | 97KW | 110KW | 120KW |
| Steam consumption (kg/h) | 900 Kg/Hour | 1100 Kg/Hour | 1200 Kg/Hour | 1400 Kg/Hour | 1500 Kg/Hour | 1700 Kg/Hour | 1800 Kg/Hour | 2000 Kg/Hour | 2100 Kg/Hour | 2300 Kg/Hour | 2500 Kg/Hour | 2700 Kg/Hour | 3000 Kg/Hour | 3500 Kg/Hour |
| Operator/shift | 6 | 6 | 6 | 6 | 7 | 7 | 7 | 7 | 8 | 8 | 8 | 9 | 9 | 10 |
| Overall dimensions(m3) | 70x3x4 | 80x3x4 | 70x3.2x4 | 80x3.2x4 | 70x3.4x4 | 80x3.4x4 | 80x3.4x4 | 80x3.4x4 | 70x3.8x4 | 80x3.8x4 | 80x4.0x4 | 80x4.2x4 | 80x4.4x4 | 80x4.6x4 |
Production line:
 |
|
 |

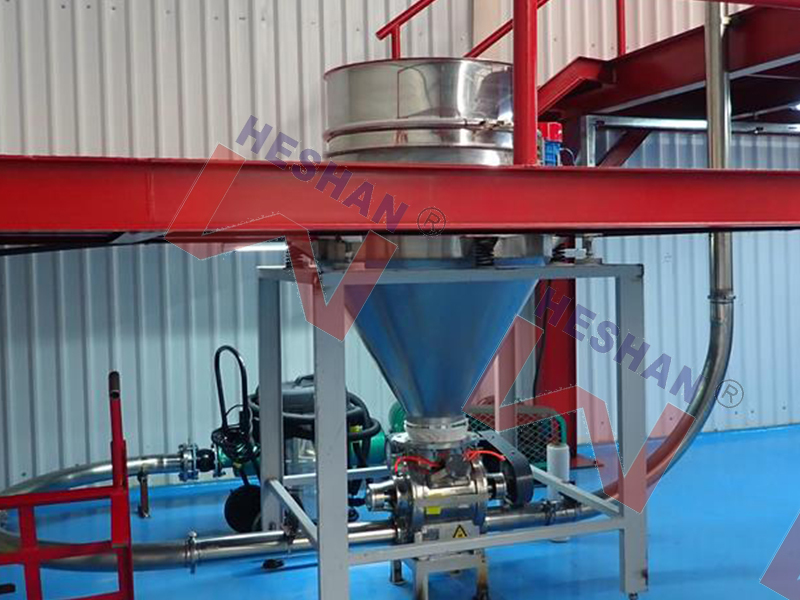

| Flour Conveying System 1 | Flour Conveying System 2 | Alkaline liquid tank |
 |
|
 |
| Alkaline Liquid Measuring Tank | Flour Mixing Machine | Compound Rolling Machine |
 |
|
 |
| Continuous Rolling Machine | Steaming Machine | Stretching Machine |
 |
|
 |
| Noodle Cooking Machine | Cutting&Dividing Machine | Arranging Machine |
 |
|
 |
| Frying System 1 | Frying System 2 | Oil Filter |
 |
|
 |
| Heat Exchanger | Oil Storage Tank | Cooling Machine |
 |
 |
 |

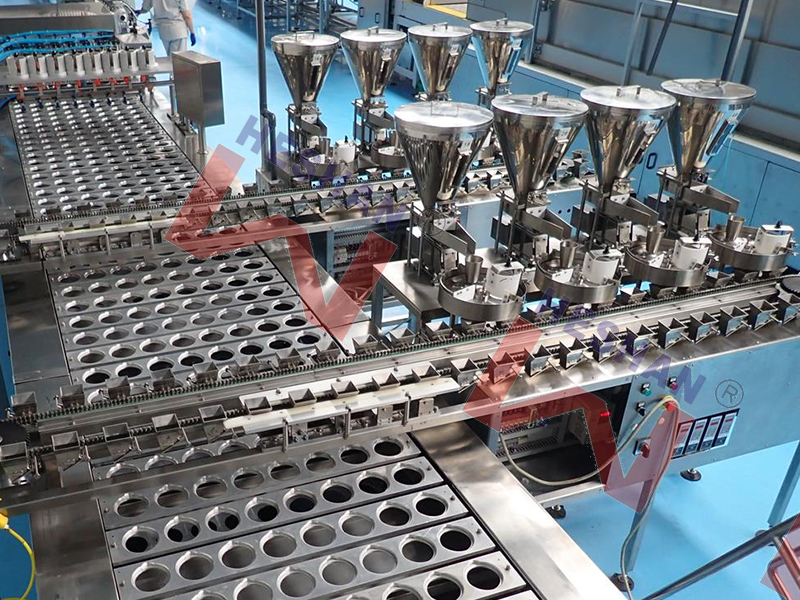

| Turning Conveyor | Cup Capping Machine | Seasoning Dispenser |
 |
 |
 |
| Cup Noodles Conveyor | Carton Sealing Machine | Steam Boiler |
 |
||
| Cup Making Machine |
Cup noodles sample:
Product drawings:
